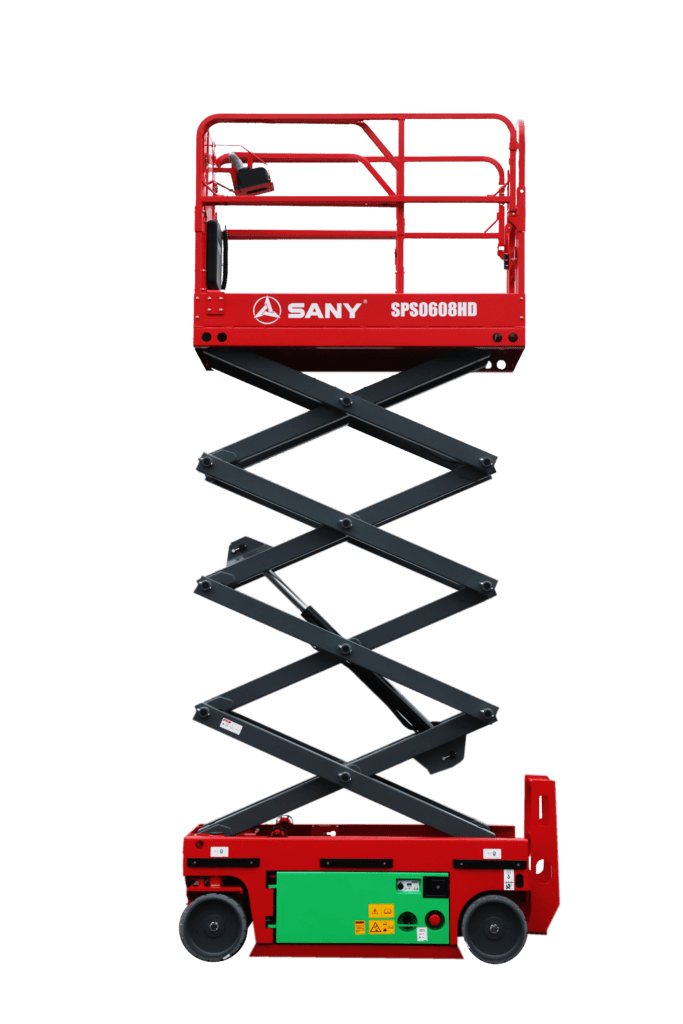

SPS0608HD
Platform Height Max.
5.8m
Lift Capacity
250kg
Weight
1360kg
Parameters
Features
| PARAMETER | UNIT | VALUE |
| Weight | kg | 1360 |
| Platform Height Max. | m | 5.8 |
| Width | m | 0.81 |
| Wheel Base | m | 1.38 |
| Working Height Max. | m | 7.8 |
| Length Machine | m | 1.88 |
| Machine Height | m | 2.15 |
| Platform Dimension | m | 1.71*0.74*1.12 |
| Ground Clearance | mm | 85 |
| Platform Length | m | 0.6 |
| Lift Capacity | kg | 250 |
| Lift Capacity – Extension Deck Extended | kg | 120 |
| Drive Speed – Stowed/Raised | km/h | 3/0.8 |
| Turning Radius – Inside/Outside | m | 0.4/1.7 |
| Lifting Motor | kW | 3.5 |
| Gradeability | % | 25 |
| Tilt Sensor Activation (Side/Front) | ° | 1.5/3 |
| Tires | mm | 323*100 |
| Charger (Input) | V | AC100-240 |
| Battery | V/Ah | 2*12/155 |
| Drive Motor | V | Hydraulic |
