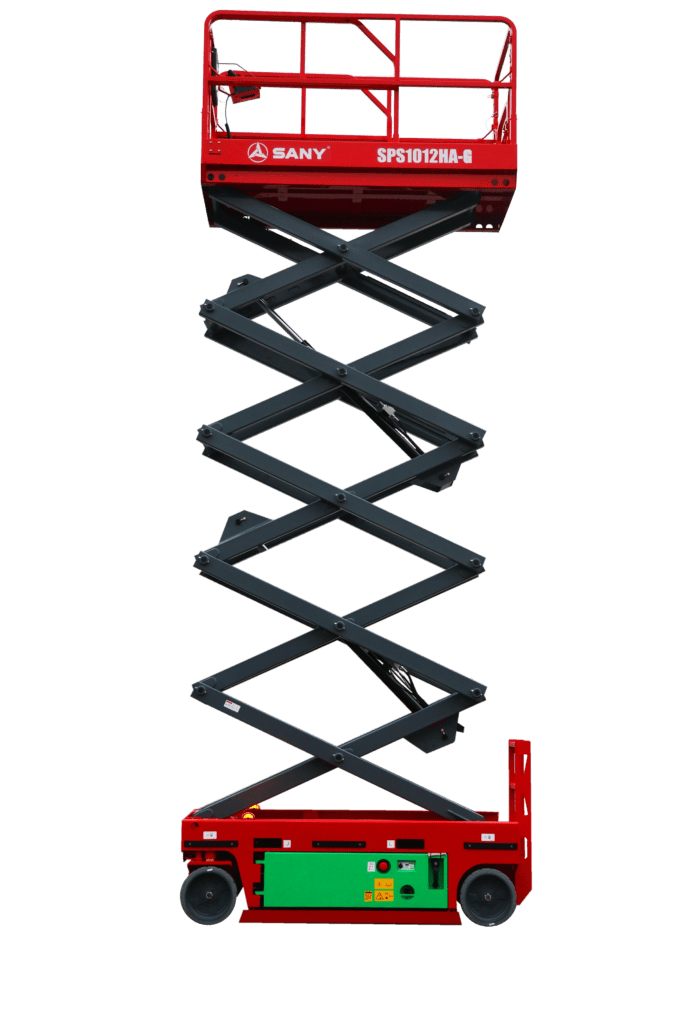

SPS1012HA
Platform Height Max.
10m
Lift Capacity
350kg
Weight
2750kg
Parameters
Features
| PARAMETER | UNIT | VALUE |
| Weight | kg | 2900 |
| Platform Height Max. | m | 12 |
| Width | m | 1.18 |
| Wheel Base | m | 1.87 |
| Working Height Max. | m | 14 |
| Length Machine | m | 2.48 |
| Machine Height | m | 1.96 |
| Platform Dimension | m | 2.27*1.12*1.12 |
| Ground Clearance | mm | 110 |
| Platform Length | m | 0.9 |
| Lift Capacity | kg | 350 |
| Lift Capacity – Extension Deck Extended | kg | 120 |
| Drive Speed – Stowed/Raised | km/h | 3.5/0.8 |
| Turning Radius – Inside/Outside | m | 0.4/2.4 |
| Lifting Motor | kW | 3.5 |
| Gradeability | % | 25 |
| Tilt Sensor Activation (Side/Front) | ° | 1.5/3 |
| Tires | mm | 381*127 |
| Charger (Input) | V | AC100-240 |
| Battery | V/Ah | 4*6/260 |
| Drive Motor | V | Hydraulic |
