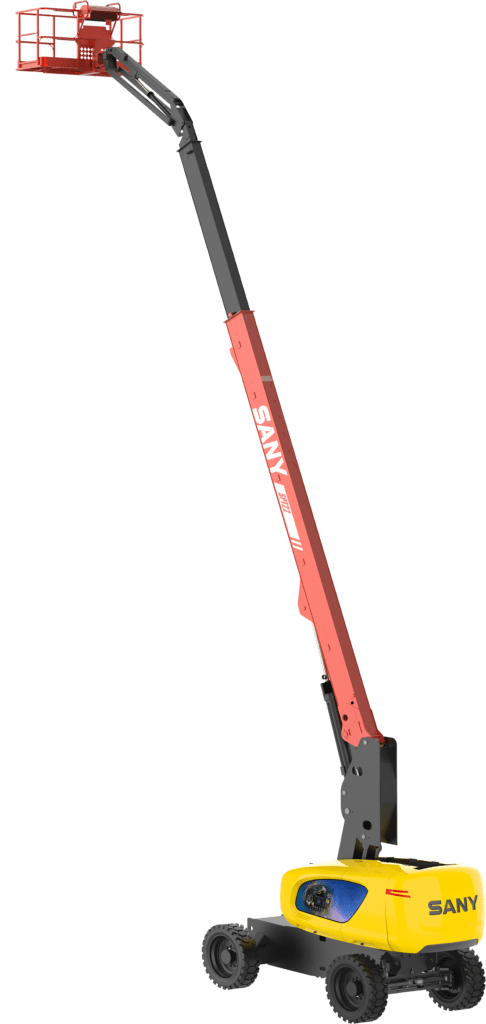

SPT22-diesel
Platform Height Max.
22.4m
Lift Capacity
300/400/480kg
Weight
12700kg
Parameters
Features
| PARAMETER | UNIT | VALUE |
| Weight | kg | 12700 |
| Platform Height Max. | m | 22.4 |
| Working Height Max. | m | 24.4 |
| Horizontal Outreach Max. | m | 16.5 |
| Length(stowed) | m | 11 |
| Width(stowed) | m | 2.45 |
| Height(stowed) | m | 2.7 |
| Platform Dimension | m | 2.44*0.91 |
| Ground Clearance | m | 0.31 |
| Wheel Base | m | 2.5 |
| Lift Capacity | kg | 300/400/480 |
| Turntable Tail Swing | m | 1.5 |
| Jib Rotation | ° | +70/-65 |
| Turntable Rotation | ° | 360 |
| Platform Rotation | ° | 180 |
| Tilt Sensor Activation | ° | X-5/Y-5 |
| Turning Radius Max.(Inside/Outside) | m | 2.4/5.5 |
| Gradeability | % | 45 |
| Drive Speed-stowed | km/h | 0-5.5 |
| Drive Speed-raised | km/h | 0-1.1 |
| Drive*Steer | WD*WS | 4*2 |
| Fuel Tank Capacity | L | 160 |
| Engine | kW/rpm | 36.5/2000/KUBOTA/China Stage 4 |
| Battery | V/Ah | / |
| Charger(Input) | V AC | / |
