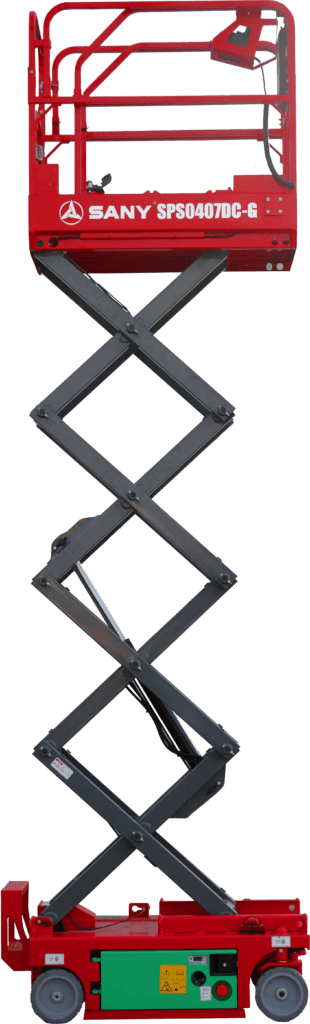

SPS0407DC
Platform Height Max.
4.5m
Lift Capacity
240kg
Weight
945kg
Parameters
Features
| PARAMETER | UNIT | VALUE |
| Weight | kg | 945 |
| Platform Height Max. | m | 4.5 |
| Width | m | 0.76 |
| Wheel Base | m | 1.06 |
| Working Height Max. | m | 6.5 |
| Length Machine | m | 1.47 |
| Machine Height | m | 1.99 |
| Platform Dimension | m | 1.3*0.72*1.21 |
| Ground Clearance | mm | 60 |
| Platform Length | m | 0.6m |
| Lift Capacity | kg | 240 |
| Lift Capacity – Extension Deck Extended | kg | 120 |
| Drive Speed – Stowed/Raised | km/h | 4/0.8 |
| Turning Radius – Inside/Outside | m | 0.4/1.6 |
| Lifting Motor | kW | 1.3 |
| Gradeability | % | 25 |
| Tilt Sensor Activation (Side/Front) | ° | 1.5/3 |
| Tires | mm | 250*80 |
| Charger (Input) | V | AC100-240 |
| Battery | V/Ah | 2*12/115 |
| Drive Motor | V | DC24 |
